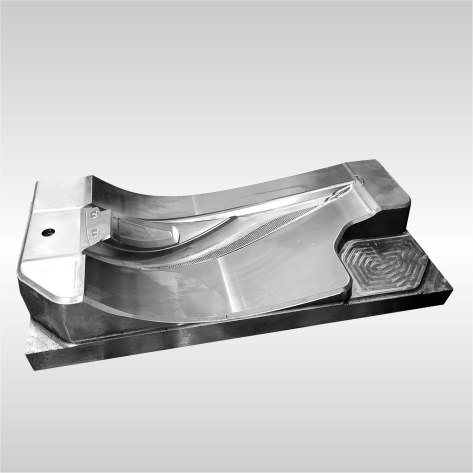

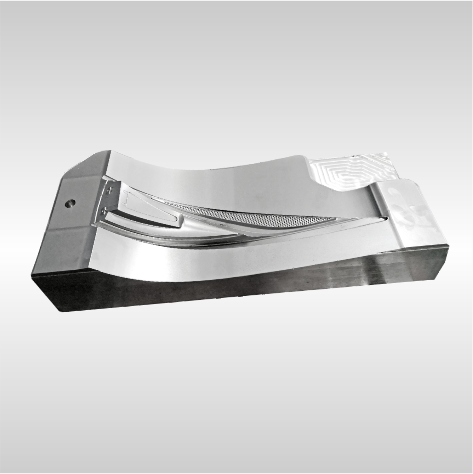

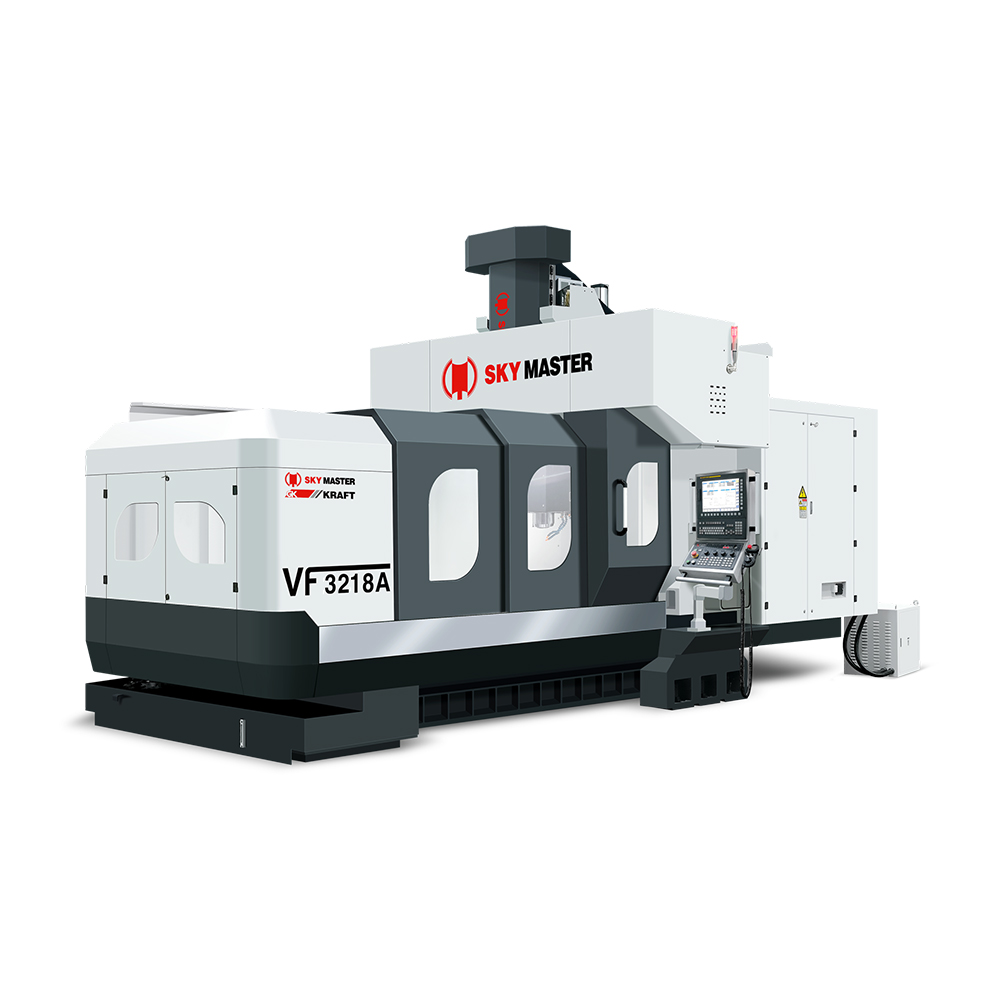

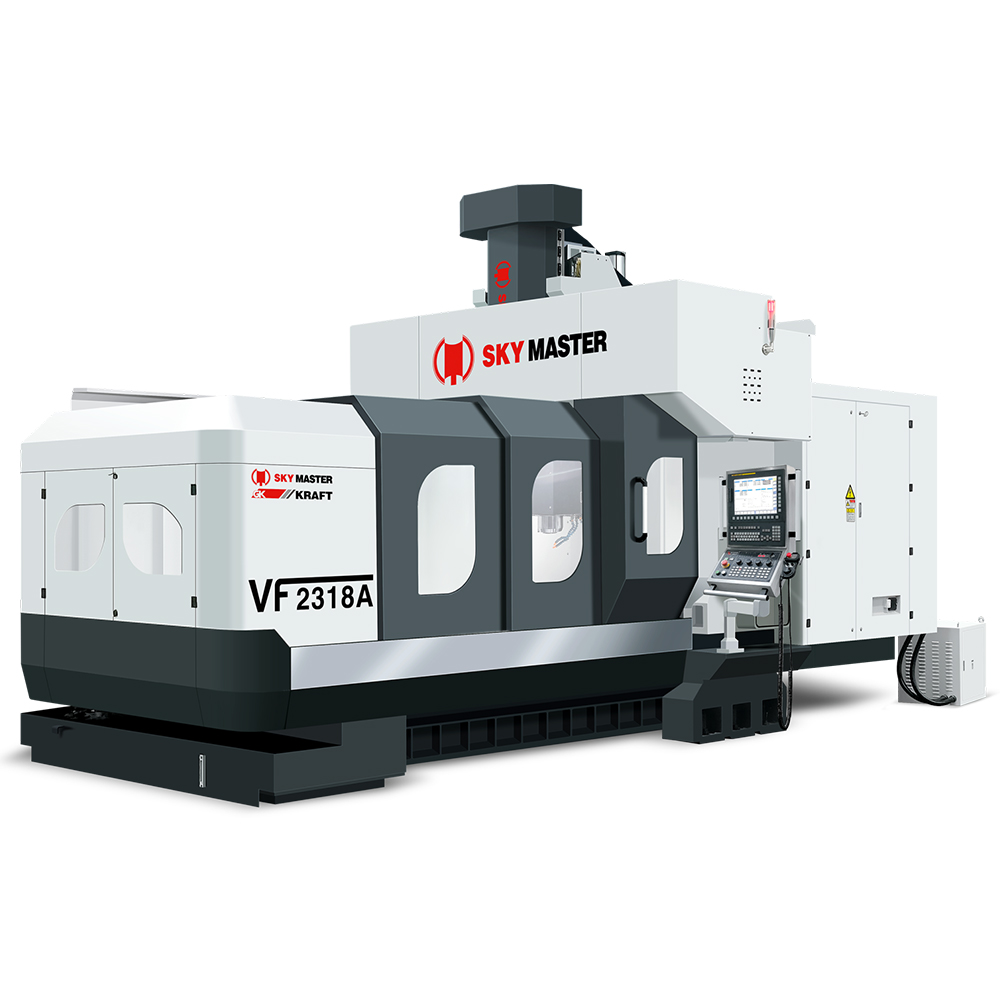

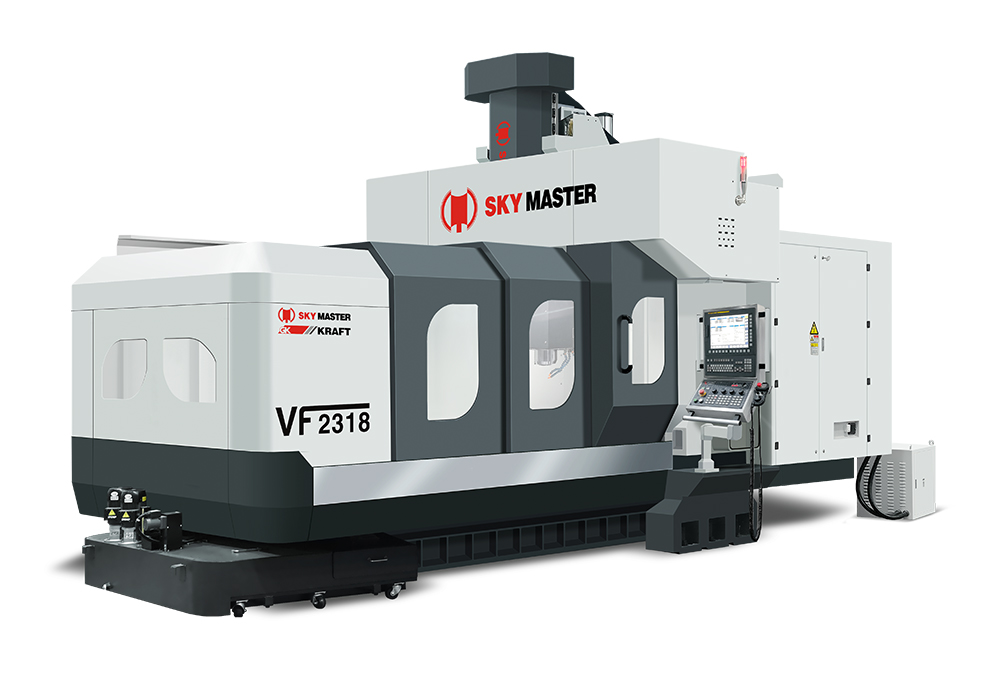

VF18 Series-VF High Speed Series

Items			Unit	VF2318	VF2318A	VF3218	VF3218A	VF4118	VF4118A
Standard controller				FANUC 0i—MF plus absolute type 0 15"LCD	MITSUBISHI M830W 19" absolute nano system	FANUC 0i—MF plus absolute type 0 15"LCD	MITSUBISHI M830W 19" absolute nano system	FANUC 0i—MF plus absolute type 0 15"LCD	MITSUBISHI M830W 19" absolute nano system
Travel	X axis travel (work-table)		mm	2300		3200		4100
	Y axis travel (saddle)		mm	2000
	Z axis travel (spindle head)		mm	800
Work table	Table size (length×width)		mm	2300x1600		3200x1600		4100x1600
Spindle	Spindle taper			HSK-A63
	Max. spindle speed		rpm	15000（Direct driven）	24000（Build-in）	15000（Direct driven）	24000（Build-in）	15000（Direct driven）	24000（Build-in）
	Spindle motor power（continual working/Max.）		kW	15/38	25/33	15/38	25/33	15/38	25/33
	Spindle torque		N.m	70/149	68/89.5	70/149	68/89.5	70/149	68/89.5
Accuracy	VDI/DGQ3441	Full travel positioning	mm	P0.015		P0.020		P0.025
		Repeatability accuracy	mm	Ps0.012		Ps0.015		Ps0.020
Machine size (length/width/height)			mm	7750x4000x4600		9250x4000x4600		10650x4000x4600
Machine weight			kg	23000		26000		29000

We reserve the right to change technical parameters for improvement of our products without giving notice to customers.

Standar&Option	VF2318	VF2318A	VF3218	VF3218A	VF4118	VF4118A
FANUC 0i-MF Plus absolute type 0 15" LCD	●	○	●	○	●	○
MITSUBISHI M830W 19" LCD	○	●	○	●	○	●
SIEMENS 828D 15.6" LCD	○	○	○	○	○	○
SIEMENS ONE 15"LCD	○	○	○	○	○	○
Max. 400 blocks pre-read	●	x	●	x	●	x
iHMI+ManualGuide i + Data Server 1G	●	x	●	x	●	x
Interpolation type straightness compensation	●	x	●	x	●	x
Direct driven spindle 15000rpm HSKA63	●	x	●	x	●	x
Direct driven spindle 15000rpm BBT40	○	x	○	x	○	x
Electric spindle 20000rpm HSKA63 SKYNC170	○	x	○	x	○	x
Electric spindle 24000rpm HSKA63 SKYNC/IBAG230	x	●	x	●	x	●
Direct driven spindle 10000rpm HSKA100	○	x	○	x	○	x
Electric spindie 12000rpm HSK A100 SKYNC	○	x	○	x	○	x
Arm type ATC HSKA63 24T	○	○	○	○	○	○
Chain type ATC HSKA63 32T/40T/60T	○	○	○	○	○	○
Column raise 200	○	○	○	○	○	○
Column raise 300	○	○	○	○	○	○
Rigid tapping	●	●	●	●	●	●
Full-enclosed splash guard	●	●	●	●	●	●
Spindle chiller / Coolant surrounding spindle	●	●	●	●	●	●
Spindle air sealing / Air blowing device	●	●	●	●	●	●
Working area light / 3 colors warning light	●	●	●	●	●	●
A/C for electric cabinet	●	●	●	●	●	●
Portable MPG	●	●	●	●	●	●
Grease lubrication device	●	●	●	●	●	●
Coolant system / Pneumatic system	●	●	●	●	●	●
Chain chip conveyor	○	○	○	○	○	○
Coil chip conveyor	●	●	●	●	●	●
Air gun / Water gun with flushing function	●	●	●	●	●	●
Oil skimmer	●	●	●	●	●	●
Automatically power off / Tool kit	●	●	●	●	●	●
Transformer	●	x	●	x	●	x
Adjustable level bolts and foundation block	●	●	●	●	●	●
Safety door interlock / Operation manual	●	●	●	●	●	●
Roof spraying system	○	○	○	○	○	○
Drawer type water tank	●	●	●	●	●	●
Buzzer alarm lamp	○	○	○	○	○	○
Air dryer	○	●	○	●	○	●
Oil mist collection machine	○	○	○	○	○	○
Coolant through spindle center 20/70bar	○	○	○	○	○	○
Voltage stabilizer	○	○	○	○	○	○
Collision avoidance device	○	○	○	○	○	○
Measuring system	○	○	○	○	○	○
Smart spindle temperature compensation (FANUC)	●	●	●	●	●	●
Absolute linear scale (FAGOR)	○	○	○	○	○	○
Water tank with level detection	●	●	●	●	●	●
Full enclosed iron box package	○	○	○	○	○	○

●

Standard

○

Optional

x

Not available

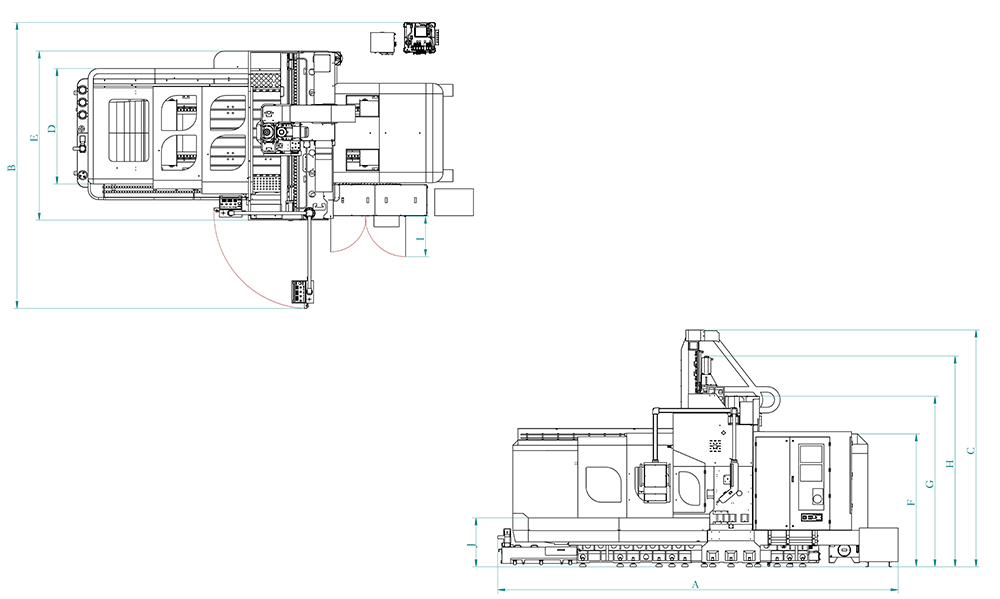

	A	B	C	D	E	F	G	H	I	J
VF2318/2318A	7350	5535	4600	2530	4000	2610	3300	4070	790	940
VF3218/3218A	9250	5535	4600	2530	4000	2610	3300	4070	790	940
VF4118/4118A	10650	5535	4600	2530	4000	2610	3300	4070	790	940
