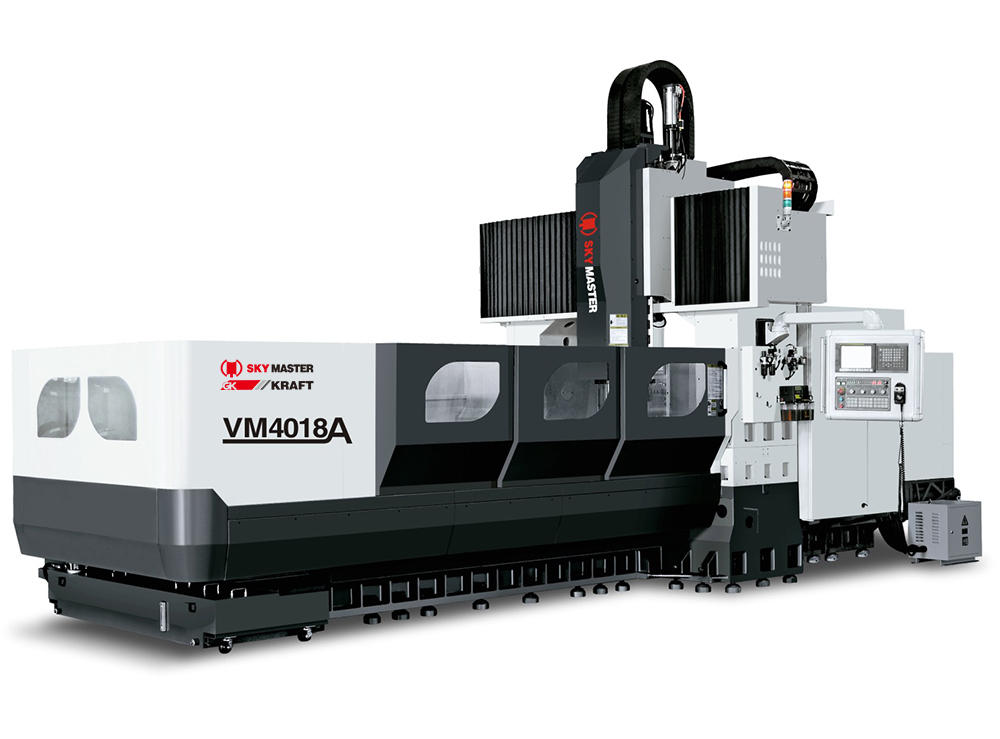

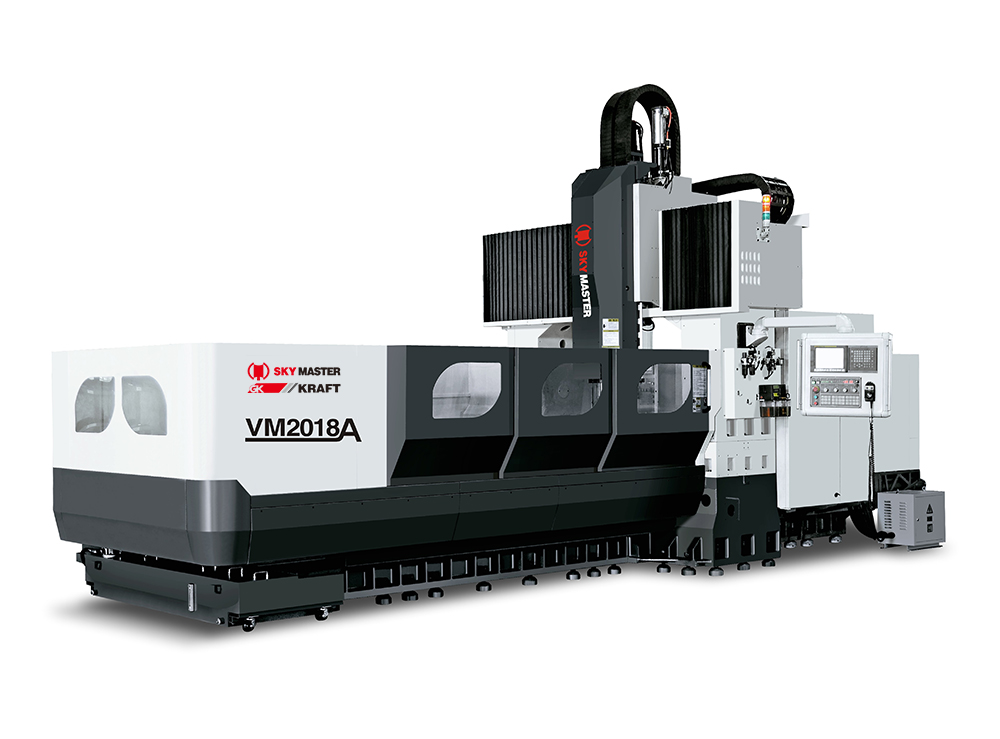

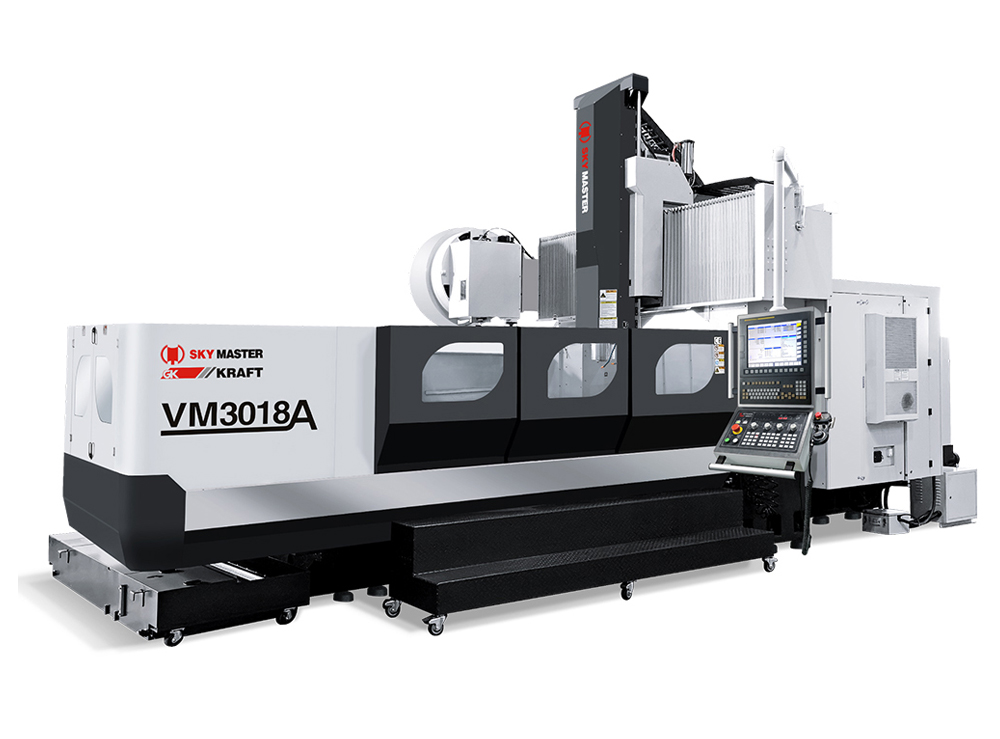

VM18A Series-VM Double Column Series

Items			Unit	VM2018A	VM3018A	VM4018A
Standard controller				FANUC 0i—MF plus absolute type 0 15"LCD
Travel	X axis travel (work-table)		mm	2300	3200	4100
	Y axis travel(saddle)		mm	2000
	Z axis travel(spindle head)		mm	800
Work table	Table size (length×width)		mm	2300x1600	3200x1600	4100x1600
Spindle	Spindle taper			BT50
	Max. spindle speed		rpm	6000(Direct driven)
	Spindle motor power（continual working/Max.）		kW	22/54
	Spindle torque		N.m	770/1892
Accuracy	VDI/DGQ3441	Full travel positioning accuracy	mm	P0.015	P0.020	P0.025
		Repeatability accuracy	mm	Ps0.012	Ps0.015	Ps0.020
Machine size (length/width/height)			mm	7450x4450x4600	8950x4450x4600	10350x4450x4600
Machine weight			kg	23000	26000	29000

We reserve the right to change technical parameters for improvement of our products without giving notice to customers.

Standard&Option	VM2018A	VM3018A	VM4018A
FANUC 0i-MF plus absolute type 0 15" LCD	●	●	●
MITSUBISHI M80A 15" touch type LCD	○	○	○
MITSUBISHI M830S 15" touch type LCD	○	○	○
SIEMENS 828D 15.6" LCD	○	○	○
SIEMENS ONE 15"LCD	○	○	○
Max. 400 blocks pre-read+Data Server 1G	●	●	●
iHMI+Manual Guide i+Interpolation type straightness compensation	●	●	●
Direct driven spindle with gear box 6000rpm	●	●	●
Direct driven spindle 8000rpm	○	○	○
Direct driven spindle 10000rpm	○	○	○
Direct driven spindle with gear box 8000rpm	○	○	○
Column raise 200mm/300mm	○	○	○
Z travel enlarge to 1000mm	○	○	○
Coolant through spindle center 20/70bar	○	○	○
Arm type ATC 24T	○	○	○
Chain type ATC 32/40/60T	○	○	○
Rigid tapping	●	●	●
Full splash guard	●	●	●
Full enclosed guard with roof	○	○	○
Spindle chiller	●	●	●
Spindle air sealing	●	●	●
Air blowing device	●	●	●
Coolant surrounding spindle	○	○	○
Working area light	●	●	●
3 colors warning light	●	●	●
Heat exchanger in electrical cabinet	●	●	●
Portable MPG	●	●	●
Tool coolant system/Pneumatic system	●	●	●
Chain chip conveyor	●	●	●
Coil chip conveyor	●	●	●
Air gun/Water gun with flushing function	●	●	●
Automatically power off	●	●	●
Transformer	●	●	●
Tool kit	●	●	●
Adjustable level bolts and foundation block	●	●	●
Safety door interlock	●	●	●
Tool release pedal switch	●	●	●
Operation manual	●	●	●
Smart spindle temperature compensation (FANUC)	○	○	○
Buzzer alarm lamp	○	○	○
A/C for electric cabinet	○	○	○
Oil circuit tool shank inferface	○	○	○
Oil skimmer	○	○	○
Grease lubrication	●	●	●
Voltage stabilizer	○	○	○
Absolute linear scale ( FAGOR )	○	○	○
Full enclosed iron box package	○	○	○
Water tank with level detection	●	●	●
Warranty prolong 1 year	○	○	○

●

Standard

○

Optional

x

Not available

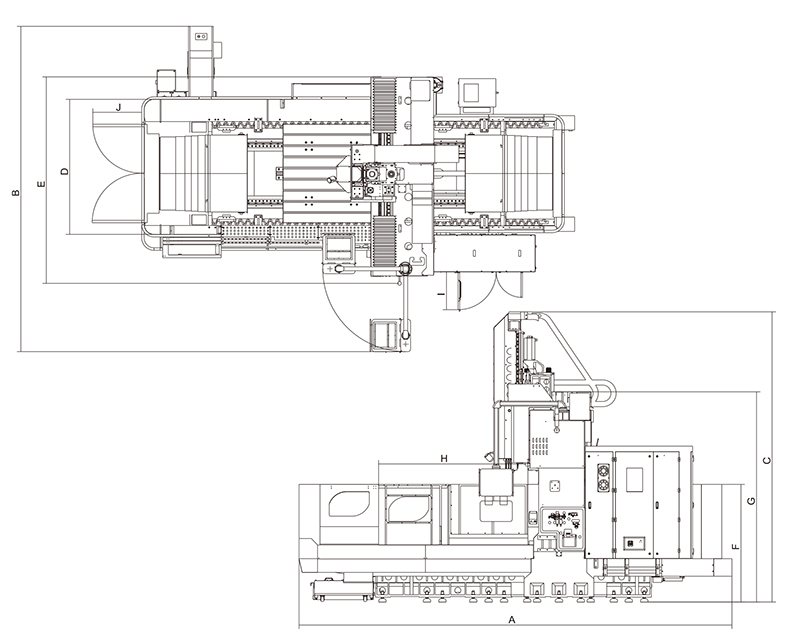

	A	B	C	D	E	F	G	H	I	J
VM2018A	7450	4450	4600	2150	3400	2170	3280	2400	620	800
VM3018A	8950	4450	4600	2150	3400	2170	3280	3000	620	800
VM4018A	10350	4450	4600	2150	3400	2170	3280	3000	620	800
